Technical Description
DE / Panel PC  IP66

DE and Panel PC housings in IP66, IP69K and Hygienic Design available depending on customer requirements.

We develop just the DE / Panel PC solutions needed for each application case according to our customers' requirements.

The combination of different build technologies and our IP protection technologies leads to individual customer solutions.

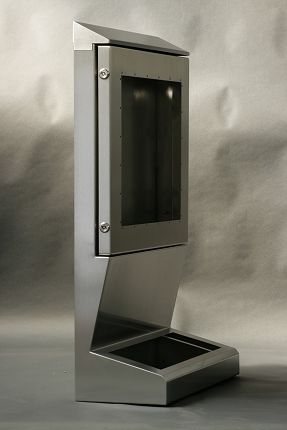

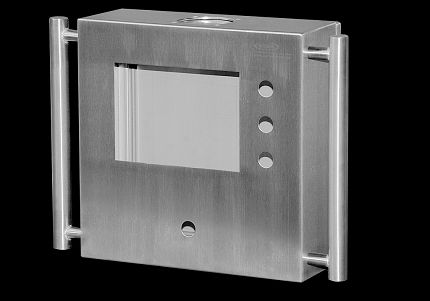

Construction Example

Construction Type

Basic construction with body, door and stainless steel hinge. Your benefit from DE/Panel PCs of STEELDESIGN are convincing technical details:

  • IP66-certified sealing system
  • IP69K-certified sealing system
  • Hygienic Design sealing system
  • Housing geometry and accessories
  • Complete system available (carrying arm system, standing system, keyboard housing and cable introduction system)



Protection Class IP66

  • Information on all protection type classes here »

Material

  • Stainless steel 1.4301, AISI 304
  • Stainless steel 1.4404, AISI 316L (V4A)
  • Stainless steel 1.4571, AISI 316Ti (V4A)
  • Other material on request

Material Thickness

  • depending on customer requirement and desired housing size, between 1.25 mm and 3 mm

Temperature Ranges

  • -40°C to +120°C

Tests and Certificates

  • Protection class test IP66

Door and Setup

  • Door stop right
  • Door stop left

The corresponding accessories are available for the individual setups:

  • Stop tab for the door
  • Gas pressure spring
  • Door setup
  • Flap setup
  • Grounding belt
  • Additional accessories can be produced on request

Closure IP66

We offer our wall housings with a variety of various closure options:

Sash closure of:

  • Stainless steel
  • Zinc-die casting
  • Chrome-plated
  • HygienicLine sash

The corresponding sashes have a double bit of 3mm, a square, a triangle or a locking cylinder.

Hinges

Our wall housings can be delivered with various types of hinges:

  • Stainless steel hinges on the inside below the door contour has an opening angle of 130°
  • Alternatively, there are 180° stainless steel hinges in the door contour, opening angle 180°.
  • Patented lifting-lowering hinge that ensures best area pressing on the hygiene seal


Installations/Accessories

Housing solutions can be individually prefabricated and equipped according to your wishes:

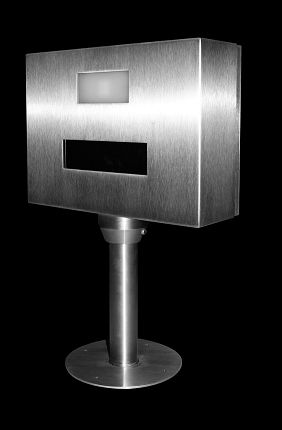

  • Carrying arm system
  • Standing system
  • Keyboard housing
  • Cable introduction system
  • Assembly Plate
  • Serial terminals
  • Flange plate
  • Sight glasses
  • Windows
  • Wall tab set
  • Cable screw connection
  • Rain roof
  • accessories of stainless steel

Furthermore, the housings can be produced with punched sheets and cut-outs as well, depending on customer requirements.

Grounding Pursuant to VDE 0660

  • Grounding set M6x16
  • DIN EN 60439-1:1994

Seal Depending on Area of Application

  • Neoprene seal 6x20mm
  • Silicone seal 6x20mm
  • Silicone seal 8x20mm
  • EMC
  • Combination seal IP protection and EMC seal
  • Additional sealing materials on request

Sandwich technology, i.e. the "double seal" on the outside and inside, meets two important requirements

Development of new sealing systems Flat seal - foam seal etc. according to customer specifications.

Individual Surfaces Available

  • polished, grain size 240 or 320
  • Powder-coated
  • Painted
  • Polished
  • Electropolished
  • Satinated
  • Glass-bead-blasted
  • CleanLine Nano-coating (more information here »)
  • Laser labelling
  • Embossing
  • Screen print
  • Engraving
  • Additional surfaces on request
