Technical Description
HygienicLine

Construction Example

Construction Type

Basic construction with body, door and newly developed lifting-lowering hinge. Your benefit from HygienicLine of STEELDESIGN are convincing technical details:

  • Use in the food area and pharmaceutics area
  • BGN-certification according to DIN EN 1672-2:2009 for all components
  • Complete system available (patented slip ring sash, patented lifting-lowering hinge, sandwich seal, HygienicLine attachment system and cable screw connection)


Protection Class IP66

  • Information on all protection type classes here »

Material

  • Stainless steel 1.4301, AISI 304
  • Stainless steel 1.4404, AISI 316L (V4A)
  • Stainless steel 1.4571, AISI 316Ti (V4A)
  • Other material on request

Material Thickness

  • depending on customer requirement and desired housing size, between 1.25 mm and 3 mm

Temperature Ranges

  • -50°C to +170°C



Tests and Certificates

  • HygienicLine: BGN-certification according to DIN EN 1672-2:2009 for all components

Door and Setup

  • Door stop right
  • Door stop left

The corresponding accessories are available for the individual setups:

  • Stop tab for the door
  • Gas pressure spring
  • Door setup
  • Flap setup
  • Grounding belt
  • Additional accessories can be produced on request

Closing IP66

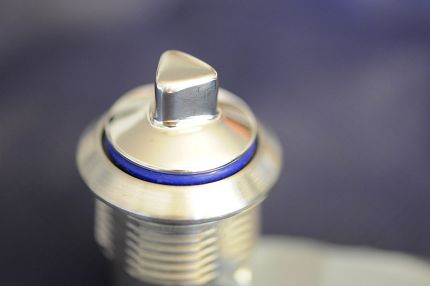

We offer our HygienicLine housings with a patented closure option:

The material is completely made of stainless steel (AISI304L or 316L) and has no dead zones in which product residue can collect and contamination nests can form.

The sashes offer great sealing between housing and lid due to their cutting ring technology.

Hinges

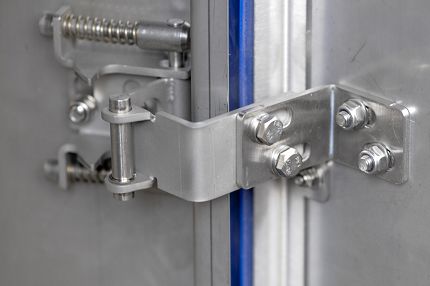

  • Patented lifting-lowering hinge that ensures best area pressing on the hygiene seal


Installations/Accessories

Housing solutions can be individually prefabricated and equipped according to your wishes:

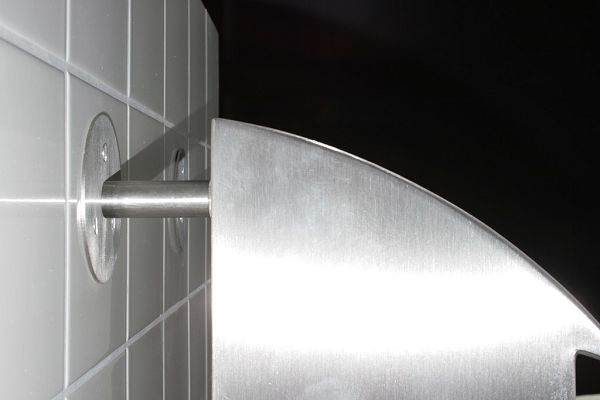

  • Hygiene-compatible wall and machine attachment with certificate of the BGN:

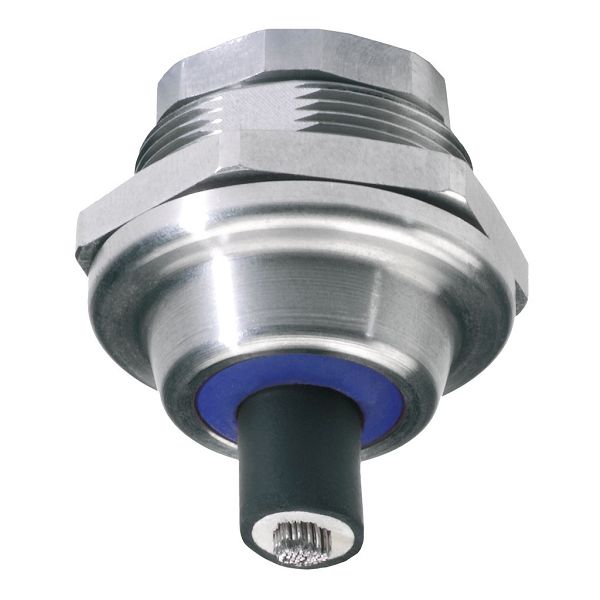

  • Hygiene-compatible cable screw connection,
  • Assembly Plate
  • Z- rails
  • accessories of stainless steel
Furthermore, the housings can be produced with punched sheets and cut-outs as well, depending on customer requirements.

Grounding Pursuant to VDE 0660

  • Grounding set M6x16
  • DIN EN 60439-1:1994

Seal Depending on Area of Application

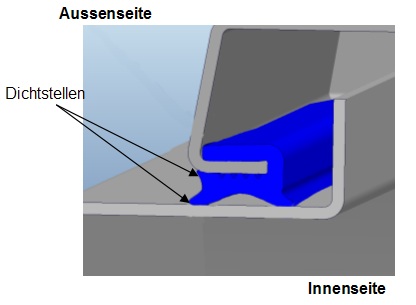

  • Sandwich technology, i.e. the "double seal" on the outside and inside, meets two important requirements

Individual surfaces available

  • Polished, grain size 240
  • Polished, grain size 320
  • Polished
  • Electropolished
  • Additional surfaces on request
